Thermaltake Toughpower GF A3 1050W, True 600W 12VHPWR Connectors on PSU & NVIDIA RTX 40 Series, ATX 3.0/PCI-E 5.0, 80+ Gold, SLI/Crossfire Ready Power Supply, PS-TPD-1050FNFAGU-L, 10 Year Warranty

Description

Brand: Thermaltake

Color: Black

Features:

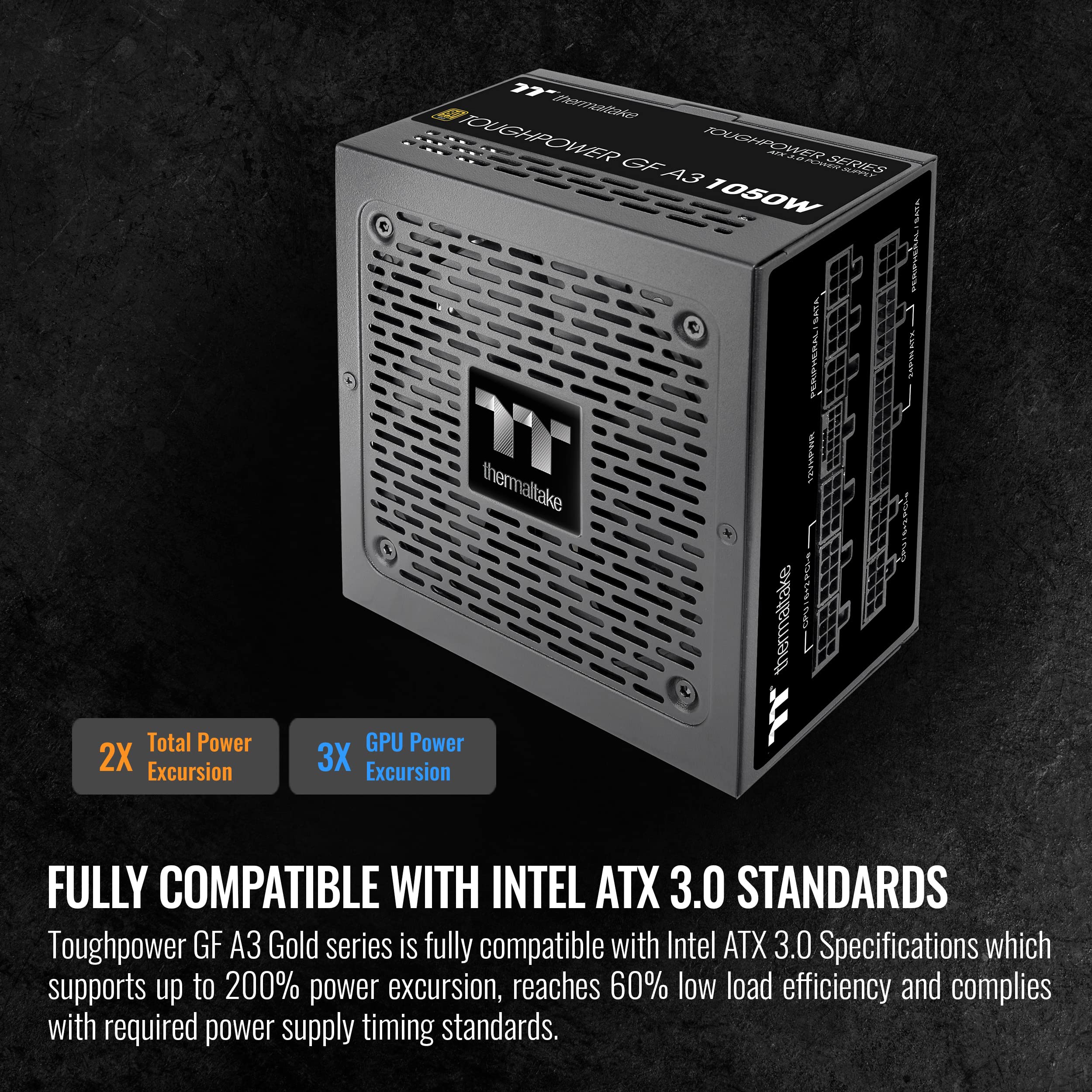

• 80 Plus Gold Certified Fully Compatible with Intel ATX 3.0 Standards
• PCIe Gen 5.0 Ready
• Made to Comply with the Latest Graphics Cards
• High Amperage Single +12V Rail High-Class Technologies

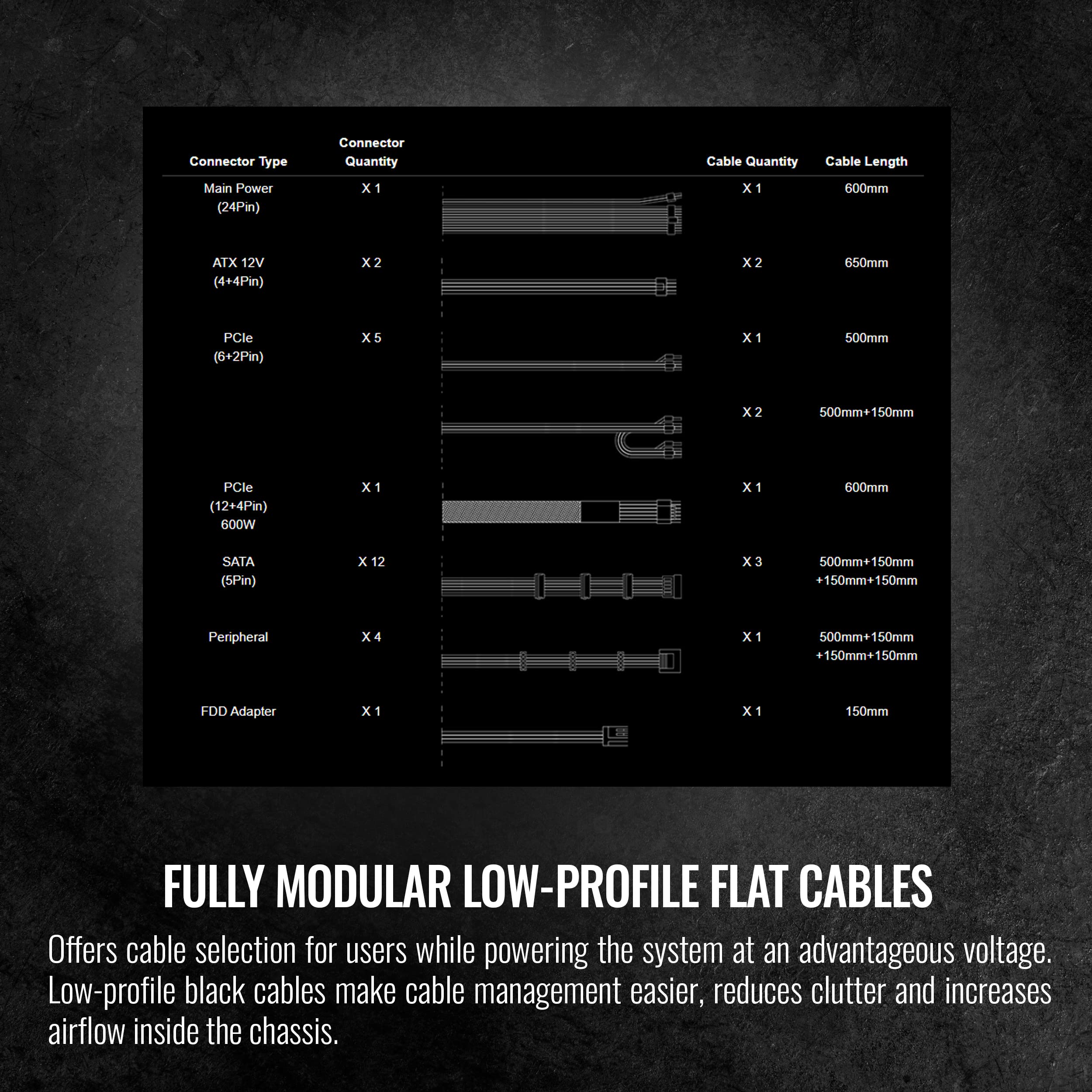

• Fully Modular Low-Profile Flat Cables

Package Dimensions: 137x324x3162

Release Date: 10-04-2023

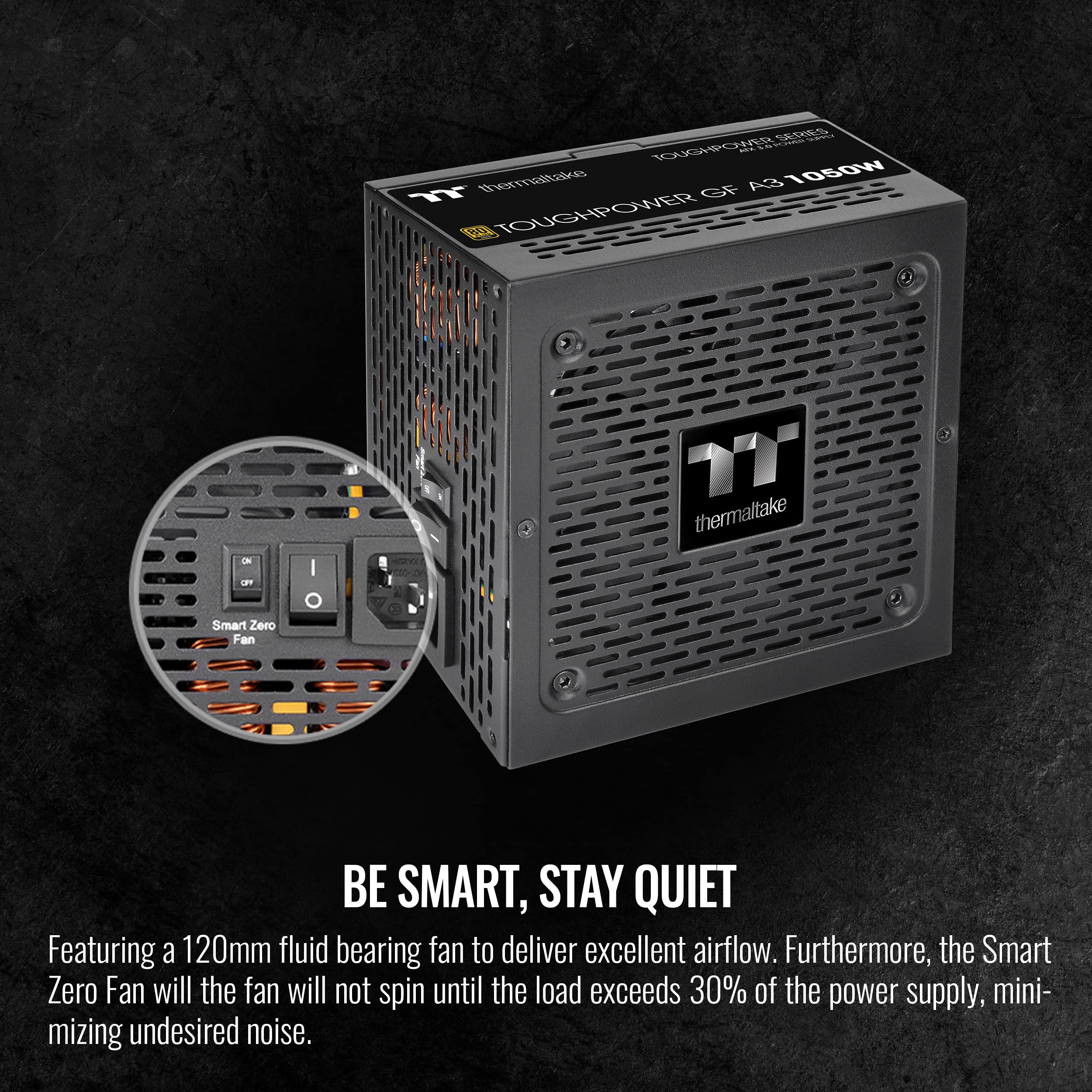

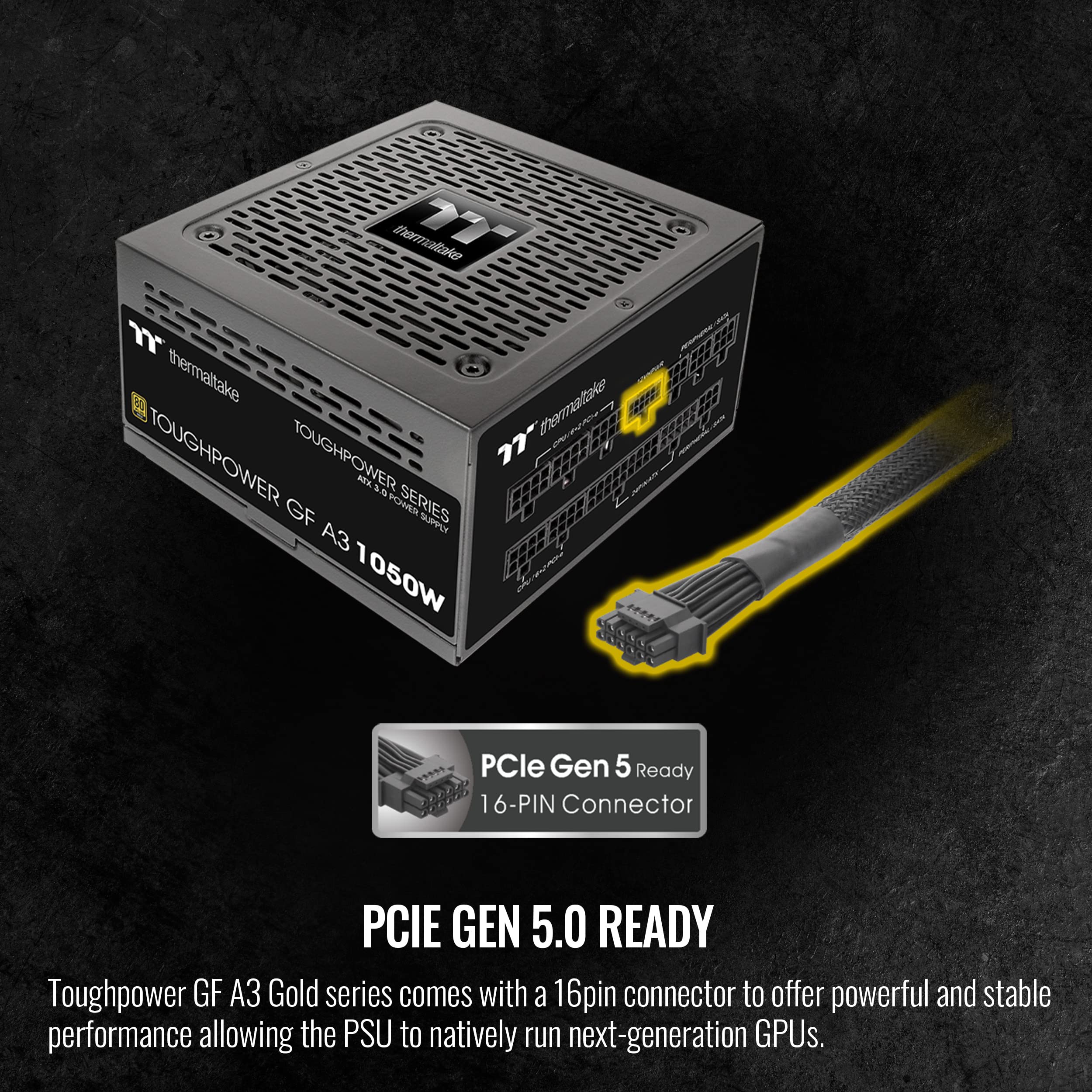

Details: Toughpower GF A3 Gold series comes with a 16pin connector to offer powerful and stable performance allowing the PSU to natively run next-generation GPUs. The wattage marked on the 12VHPWR’s connector is the recommended wattage. (Ref. Intel design guideline) The native 16 PIN (12VHPWR) PCIe connector of the GF A3 1050W can deliver up to 600W for PCIe 5.0 graphics cards. Note: 1. Recommended wattage is an estimation of system power demand. Actual power demands may vary based on specific components, usage, and many other factors. 2. Please follow the recommended power requirements from the GPU manufactures before using the 12VHPWR cable. •P/N: PS-TPD-1050FNFAGU-L •WATTS: 1050W •MODEL: TTP-1050AH2FLG •MAX. OUTPUT CAPACITY: 1050W •COLOR: Black •DIMENSION ( W / H / D ): 150mm(W)x86mm(H)x140mm(D) •PFC (POWER FACTOR CORRECTION): Active PFC •POWER GOOD SIGNAL: 100-150 msec•HOLD UP TIME: > 17msec •INPUT CURRENT: 20A-8A •INPUT FREQUENCY RANGE: 50Hz/60Hz •INPUT VOLTAGE: 100-240V～ •OPERATING TEMPERATURE: 5°C to + 45°C •OPERATING HUMIDITY: 20% to 85%,non-condensin •STORAGE TEMPERATURE: -40°C to + 55°C •STORAGE HUMIDITY: 10% to 95%, non-condensing •COOLING SYSTEM: 12cm FDB Fan •EFFICIENCY: Meet 80 PLUS® Gold at 115Vac input. •MTBF: 100,000 hrs minimum •SAFETY APPROVAL: FCC/ICES/CB/cTUVus •PCI-E 6+2PIN: 5 •PCIE 12+4PIN: 1(600W).

UPC: 841163087374
