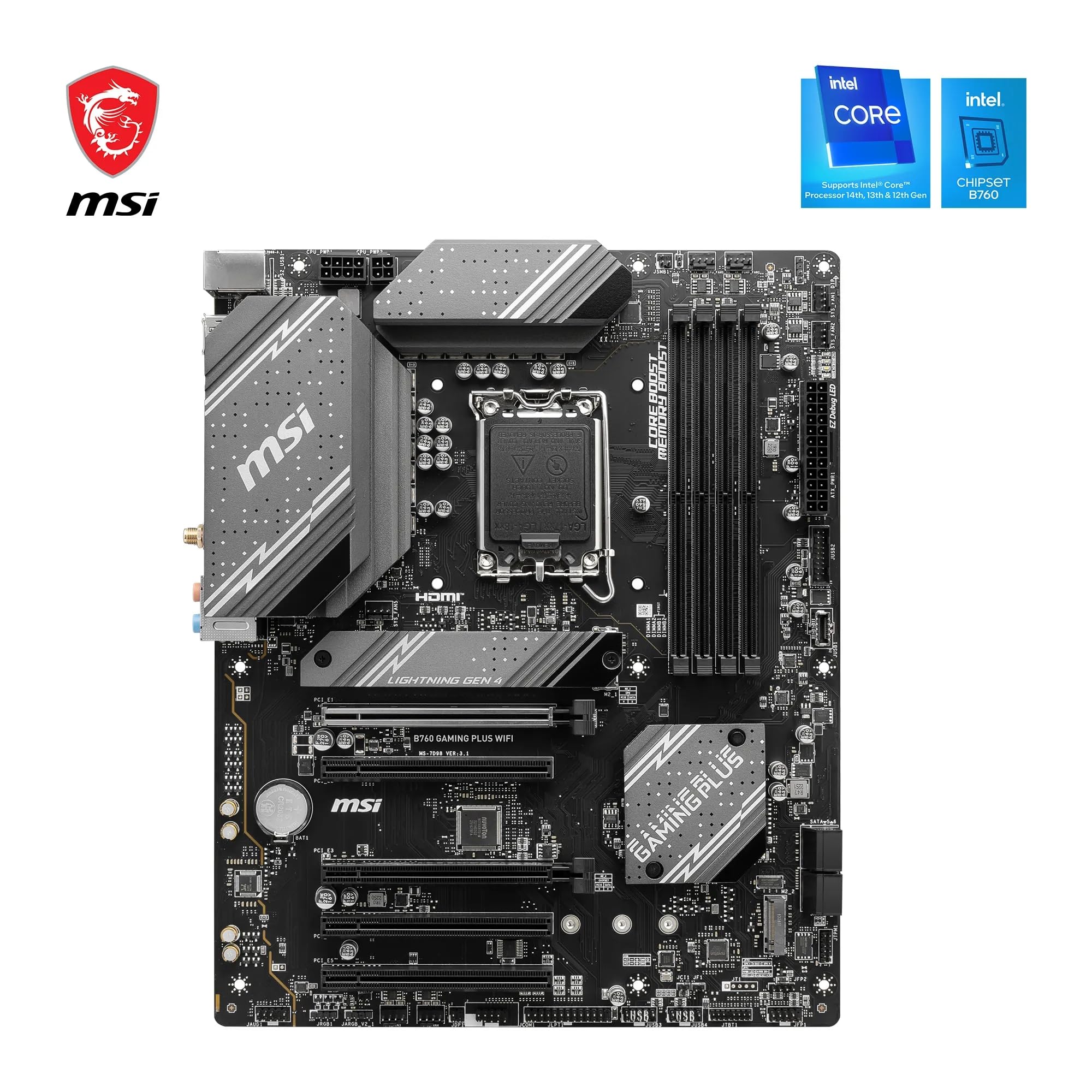

MSI B760 Gaming Plus WiFi Motherboard Intel B760 LGA 1700 ATX

Description

Brand: MSI

Features:

• 12TH & 13TH GEN CORE – The B760 GAMING PLUS WIFI (ATX) employs a 12 Duet Rail Power System (P-PAK) VRM for the Intel B760 chipset (LGA 1700, 12th & 13th Gen Core); The VRM features MSI Core Boost technology for improved stability & performance

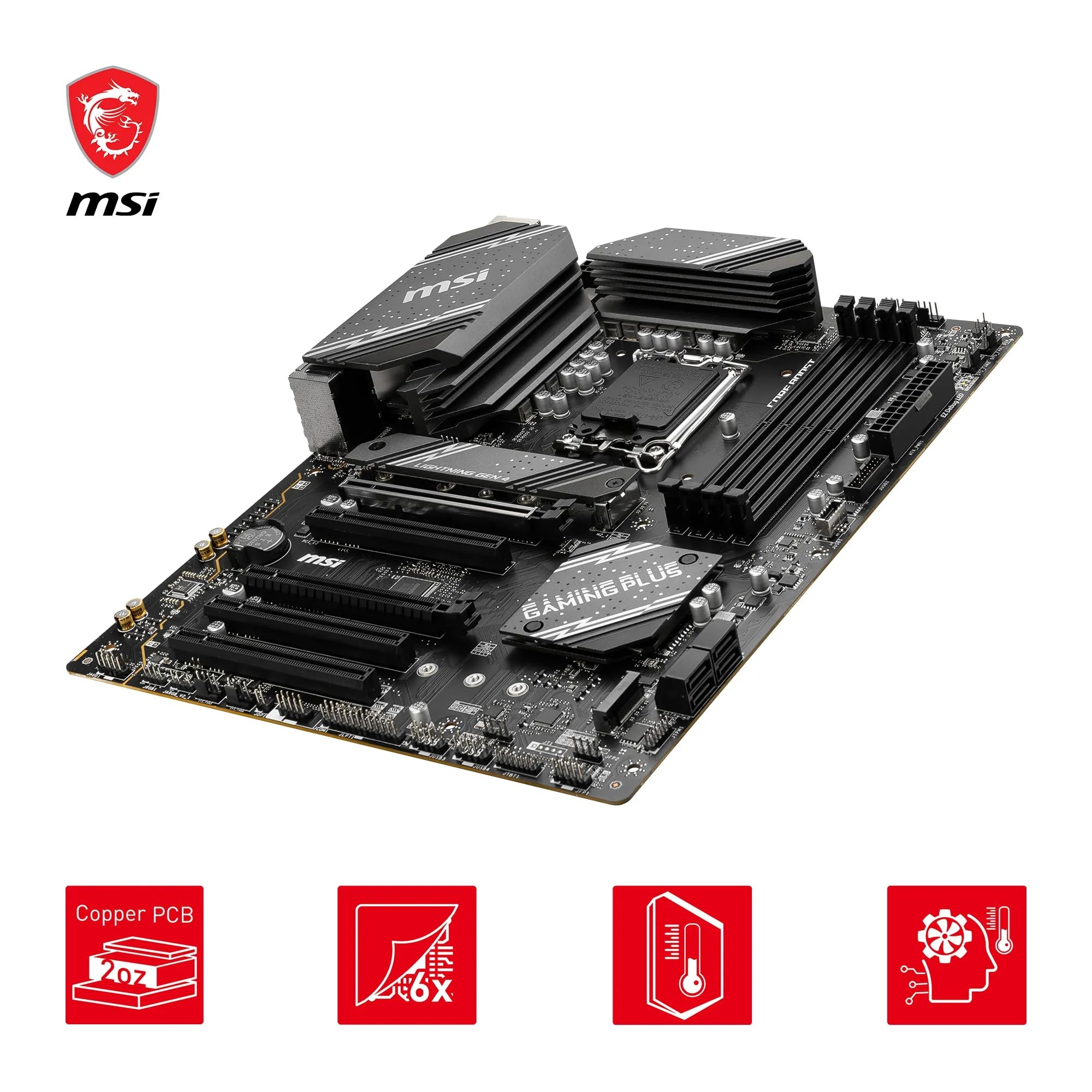

• INTEGRATED COOLING – VRM cooling features 7W/mK MOSFET thermal pads and an extended heatsink; Additional cooling includes chipset heatsink, M.2 Shield Frozr, a dedicated pump-fan cooling header & 6-layer PCB with 2 oz. thickened copper

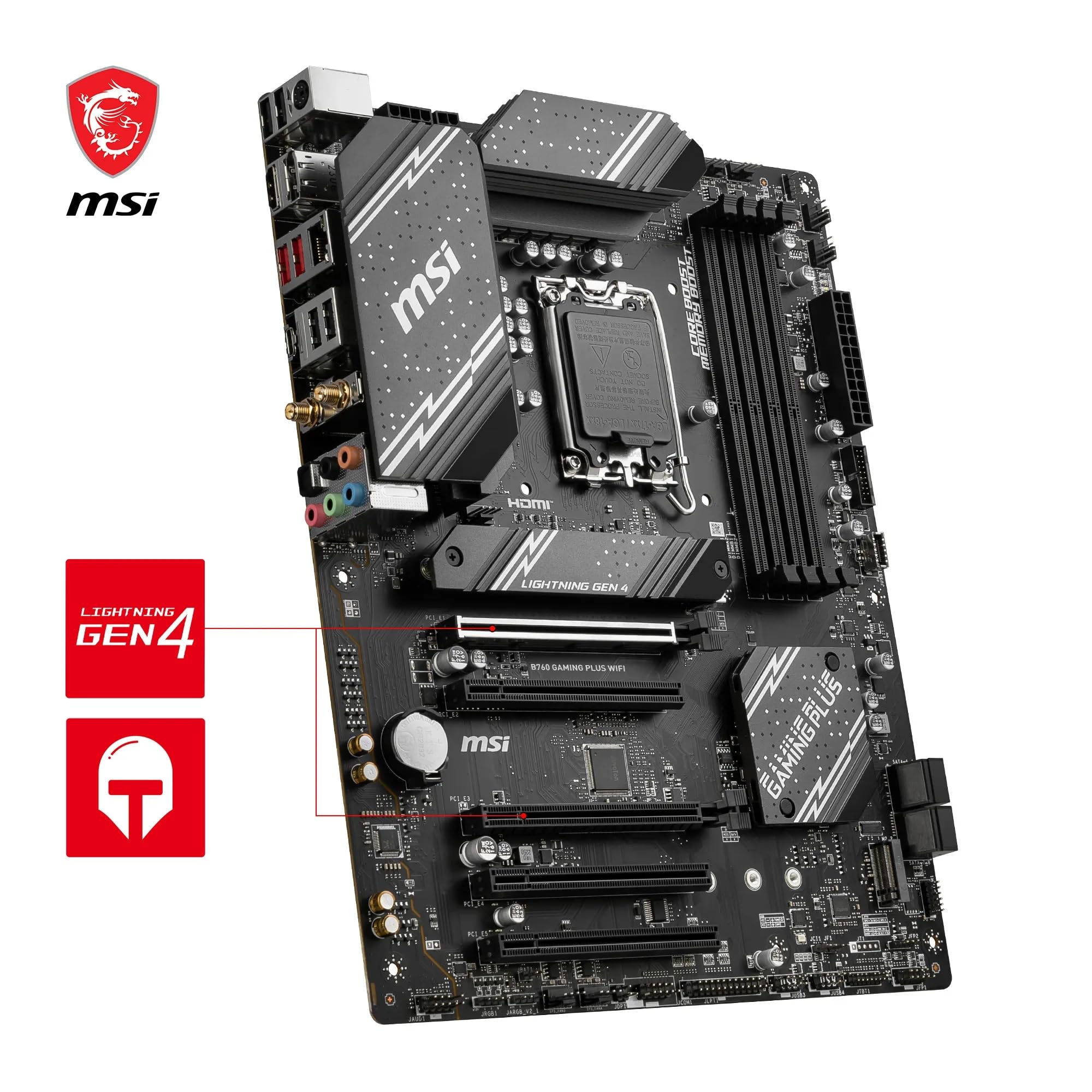

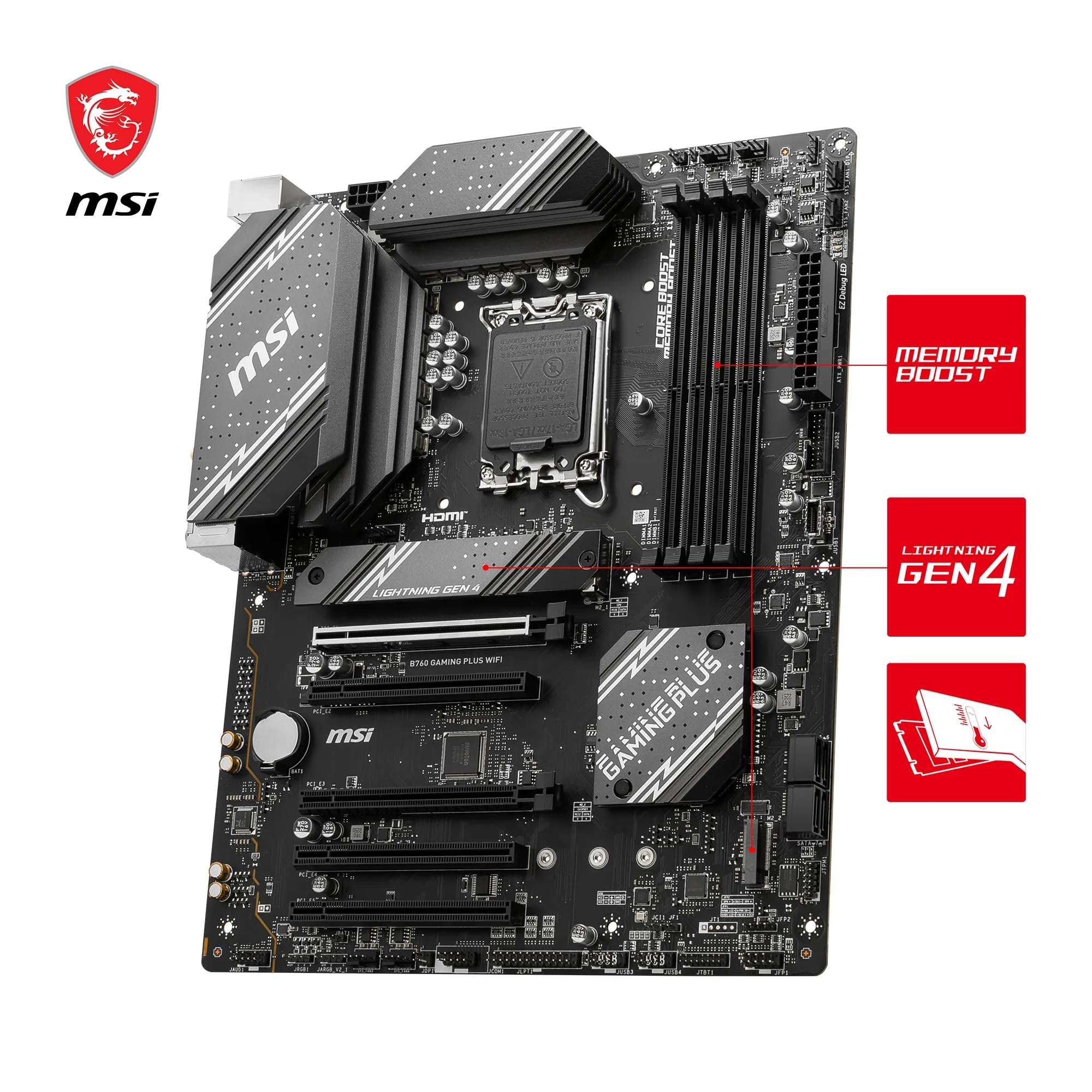

• DDR5 MEMORY, DUAL PCIe 4.0 x16 SLOTS – 4 x DDR5 DIMM slots with Memory Boost isolated circuitry for overclocking (1DPC 1R, 6800+ MHz); 2 x PCIe 4.0 x16 slots (64GB/s) supports graphics cards, primary PCIe x16 slot includes Steel Armor
• DUAL M.2 CONNECTORS – Storage options include 2 x M.2 Gen4 x4 64Gbps slots with Shield Frozr on the primary slot to prevent thermal throttling during hyper-fast SSD access

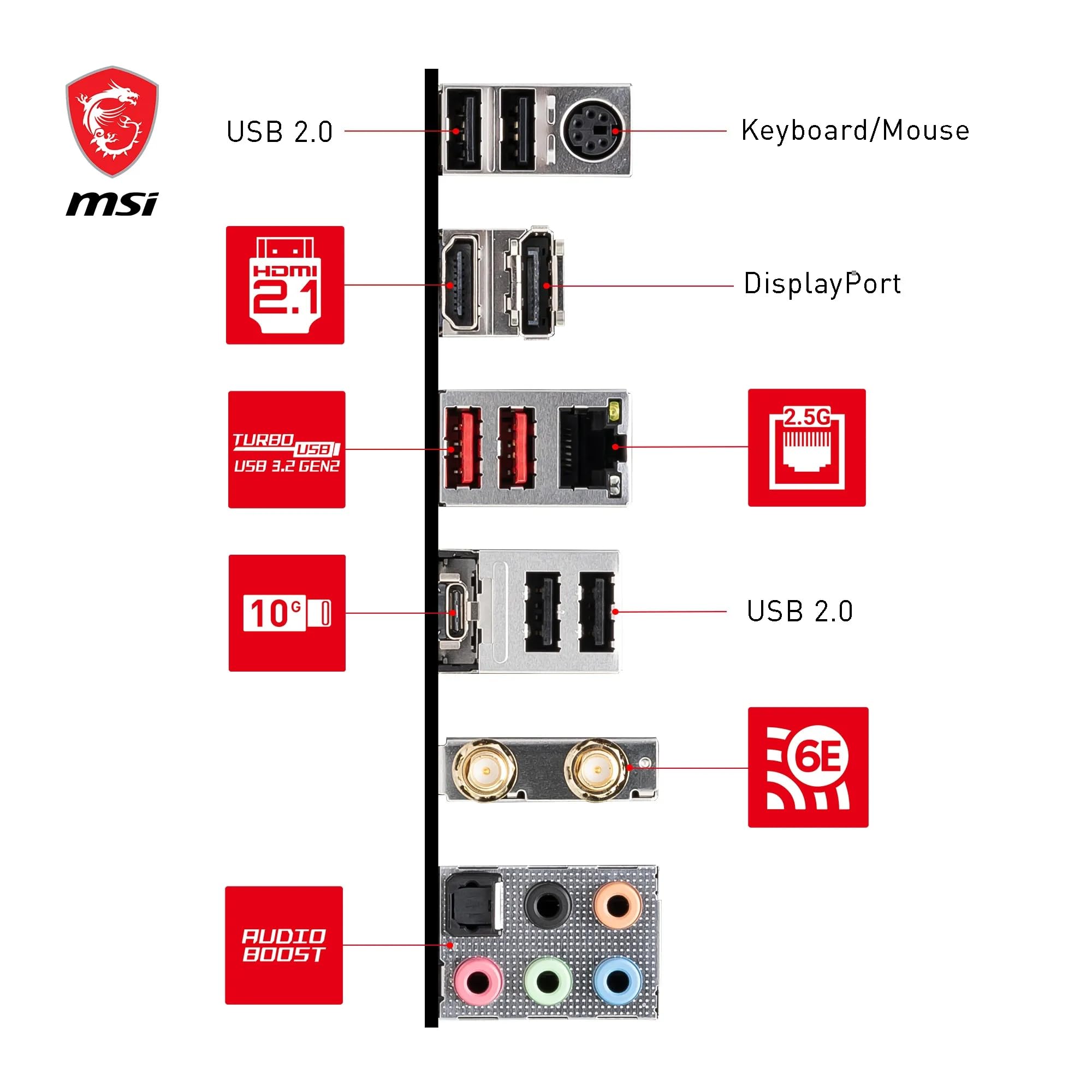

• WI-FI 6E CONNECTIVITY – Network hardware includes an Intel Wi-Fi 6E module with Bluetooth 5.3 & 2.5Gbps LAN; Rear ports include USB 3.2 Gen 2 Type-C & Type-A (10Gbps), HDMI 2.1 & DisplayPort 1.4, and 7.1 HD Audio with Audio Boost (supports S/PDIF output)

Package Dimensions: 69x346x1500

Details: Processor manufacturer: Intel, Processor socket: LGA 1700, Compatible processor series: Intel Celeron, Intel Pentium Gold. Supported memory types: DDR5-SDRAM, Maximum internal memory: 192 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA, RAID levels: 0, 1, 5, 10. Ethernet interface type: 2.5 Gigabit Ethernet, LAN controller: Dragon RTL8125BG, Top Wi-Fi standard: Wi-Fi 6E (802.11ax). Component for: PC, Motherboard form factor: ATX, Motherboard chipset family: Intel
